Catch Tank Inspection (Us)
WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

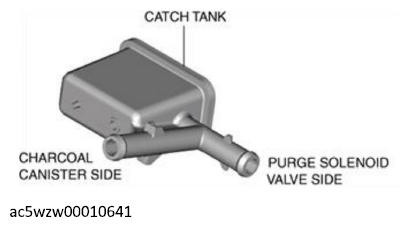

- Remove the catch tank. (See PURGE SOLENOID VALVE REMOVAL/INSTALLATION (US) .)
- Plug the purge solenoid valve side into the catch tank.
- Inspect for air leakage when blowing air using your mouth into the charcoal canister side.
- If there is air leakage, replace the catch tank. (See PURGE SOLENOID VALVE REMOVAL/INSTALLATION (US) .)
