Canister Vent (CV) Solenoid Valve Removal/Installation (Us): Notes
WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
Replacement Part
| O-ring |
| Quantity: 2 |
| Location of use: CV solenoid valve |
- Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
- Remove the charcoal canister (sub) component. (See CHARCOAL CANISTER REMOVAL/INSTALLATION (US) .)
- Remove in the order indicated in the table.
- Install in the reverse order of removal.

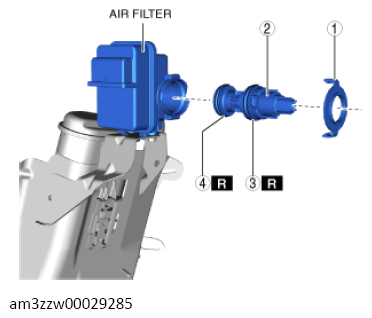

COMPONENT DESCRIPTION
| 1 | Blind cap |
| 2 | CV solenoid valve (See CV SOLENOID VALVE REMOVAL NOTE .) (See CV SOLENOID VALVE INSTALLATION NOTE .) |
| 3 | O-ring No. 1 |
| 4 | O-ring No. 2 |
