Clearance Inspection

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

Remove the rear ABS wheel-speed sensor. (See REAR ABS WHEEL-SPEED SENSOR REMOVAL/INSTALLATION .)

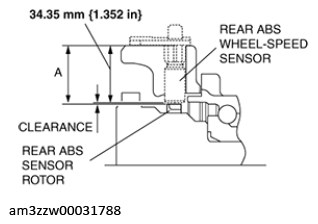

Measure the distance between the rear ABS wheel-speed sensor installation surface and the ABS sensor rotor. This is dimension A.

Courtesy of MAZDA MOTORS CORP.
Calculate the clearance between the rear ABS wheel-speed sensor and the ABS sensor rotor using the following formula:
Clearance (mm {IN}) = A-34.35 {1.352}
Verify that the clearance between the ABS sensor rotor and the rear ABS wheel-speed sensor is as indicated below.
- If there is any malfunction, replace rear ABS wheel-speed sensor. (See REAR ABS WHEEL-SPEED SENSOR REMOVAL/INSTALLATION .)
  Clearance
- 0.29-1.43 mm {0.012-0.056 in}
