Front ABS Wheel-speed Sensor Wiring Harness and Clip Disconnection Note
WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
- Refer to this note only if the disconnection of the front ABS wheel-speed sensor wiring harness and the clip shown in the illustration is required.

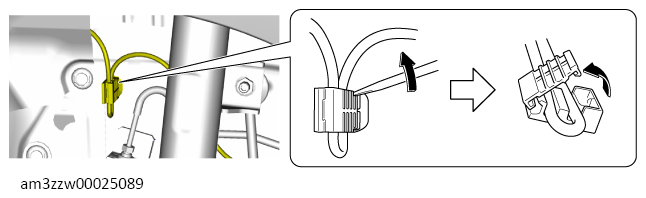

- Remove the front ABS wheel-speed sensor wiring harness and clip as shown in the illustration.

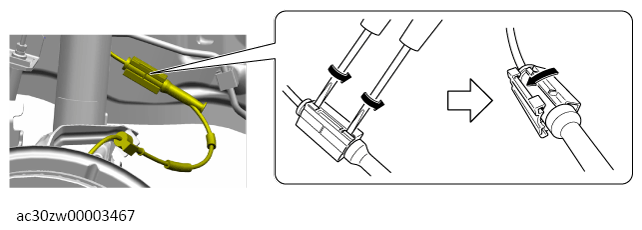

- Remove the front ABS wheel-speed sensor wiring harness and clip as shown in the illustration.
