Clearance inspection

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

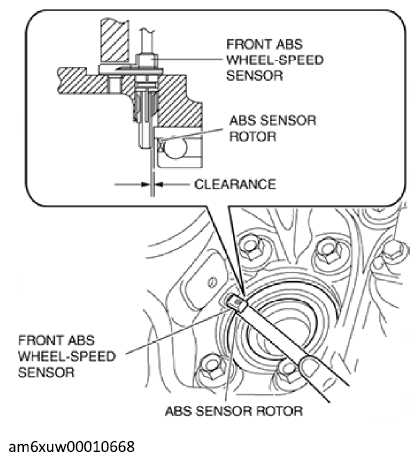

Measure the gap between the ABS sensor rotor and front ABS wheel-speed sensor using a feeler gauge.

Courtesy of MAZDA MOTORS CORP.
- If not within the specification, verify the following items and repair or replace if necessary.
  - Is there deformation or damage to the ABS sensor rotor?
  - Is there deformation or damage to the ABS wheel speed sensor?
  - Is there foreign matter adhering?
  Clearance

  0.87-1.53 mm {0.035-0.060 in}
