Brake Pipe Installation Note
WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

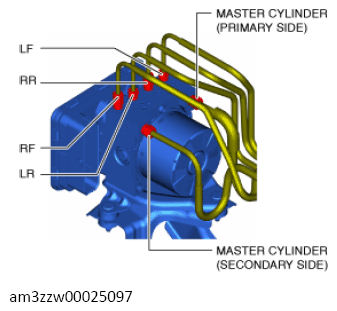

- Align the marks made before removal and install the brake pipe to the DSC HU/CM and brake pipe joint referring to the illustration.
 Courtesy of MAZDA MOTORS CORP.
|
- Tighten the brake pipe to the specified torque using the commercially available flare nut wrench.
