Rectifier (Using an analog circuit tester)
WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

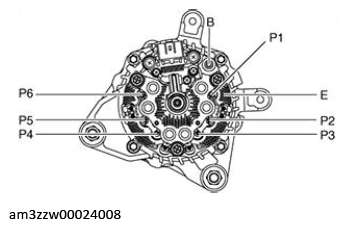

- Inspect for continuity of the diodes using an analog circuit tester.
- If not as specified, replace the generator.
CIRCUIT CONTINUITY SPECIFICATIONPositive Negative Continuity P1, P2, P3, P4, P5, P6 B Yes B P1, P2, P3, P4, P5, P6 No - Inspect for continuity of the diodes using an analog circuit tester.
- If not as specified, replace the generator.
CIRCUIT CONTINUITY SPECIFICATIONPositive Negative Continuity E P1, P2, P3, P4, P5, P6 Yes P1, P2, P3, P4, P5, P6 E No
