Generator Disassembly/Assembly (VIN L) (Us)
WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
- Disassemble in the order indicated in the table.
- Assemble in the reverse order of disassembly.
SKYACTIV-G 2.0 (MTX)

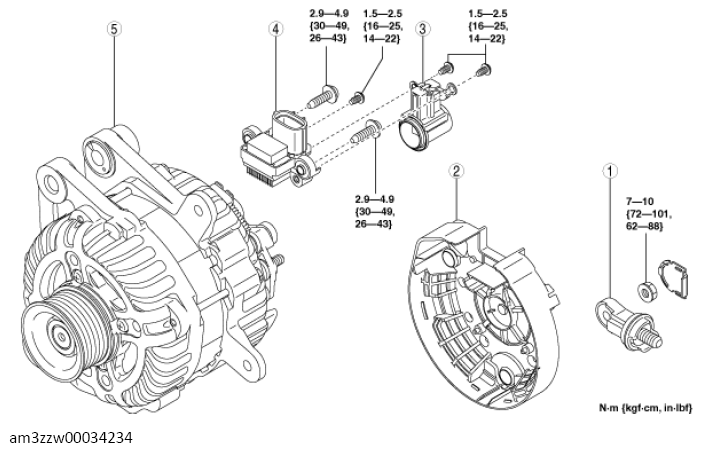

Fig 1: Generator Components With Torque Specification (SKYACTIV-G 2.0, MTX, Without Cylinder Deactivation And US)
COMPONENT DESCRIPTION
| 1 | Terminal B component |
| 2 | Rear cover |
| 3 | Brush holder |
| 4 | Regulator assy |
| 5 | Generator |
SKYACTIV-G 2.0 (ATX), SKYACTIV-G 2.5

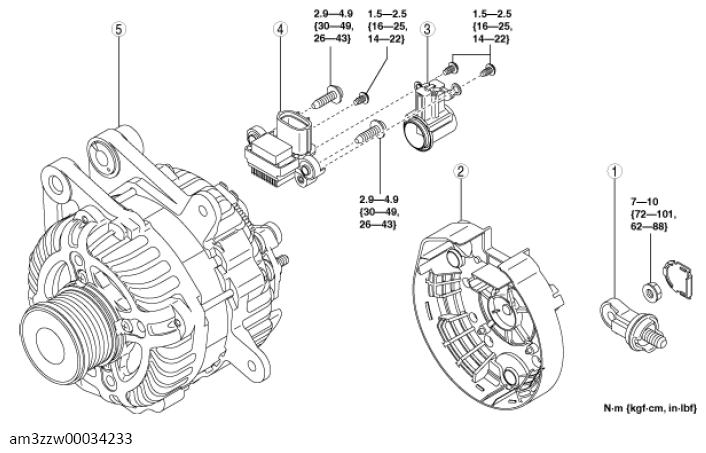

Fig 2: Generator Components With Torque Specification (SKYACTIV-G 2.0, ATX, SKYACTIV-G 2.5, Without Cylinder Deactivation And US)
COMPONENT DESCRIPTION
| 1 | Terminal B component |
| 2 | Rear cover |
| 3 | Brush holder |
| 4 | Regulator assy |
| 5 | Generator |
