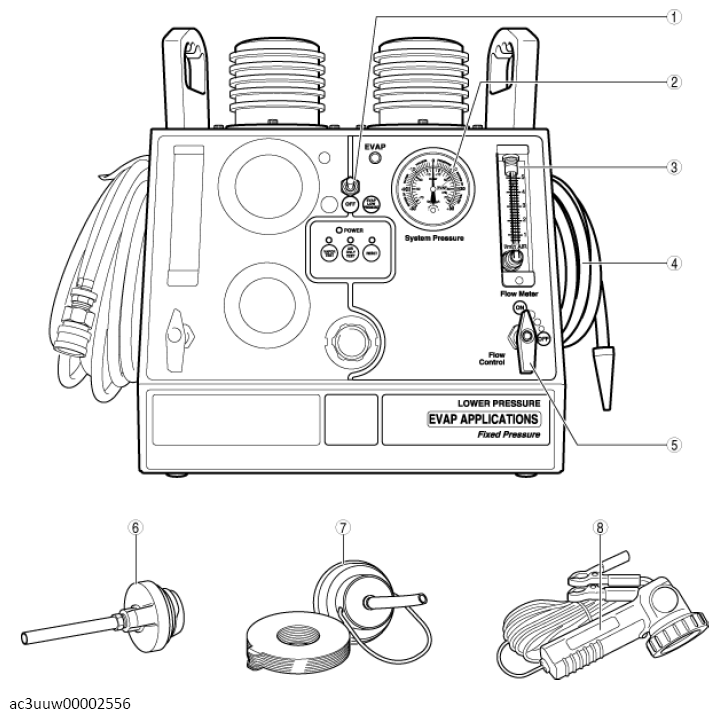

Dual purpose diagnostic leak detector (EVAP/low pressure) component parts
WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of MAZDA MOTORS CORP.
|
COMPONENT DESCRIPTION
| 1 |
EVAP testing indicator |
| 2 |
System pressure |
| 3 |
Flow meter |
| 4 |
EVAP/low pressure vapor output hose |
| 5 |
EVAP/low pressure flow control valve |
| 6 |
Gas cap single thread [tool No.: 96-0092] |
| 7 |
Universal filler neck connector [tool No.: 95-0011] |
| 8 |
Halogen inspection light [tool No.: 96-0011] |
