DTC B1D55-13: Tel Antenna No. 2 Circuit Malfunction (Telematics Communication Unit): Outline

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

DTC B1D55:13 (TELEMATICS COMMUNICATION UNIT) DETECTION CONDITION AND POSSIBLE CAUSE

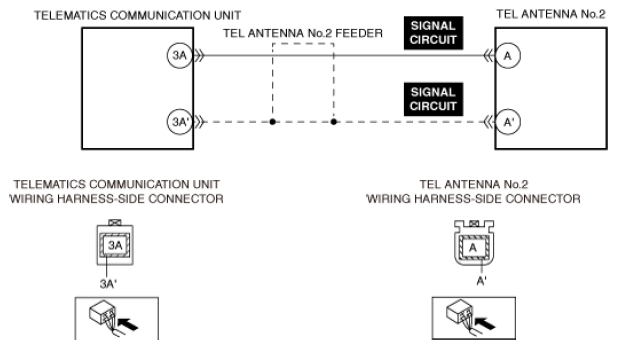

System malfunction location	TEL antenna No. 2 circuit malfunction
Detection condition	The telematics communication unit detects an open circuit in the TEL antenna No. 2 circuit.
Fail-safe	Not applicable
Possible cause	TEL antenna No. 2 connector or terminal malfunction Telematics communication unit connector or terminal malfunction Open circuit in TEL antenna No. 2 signal circuit TEL antenna No. 2 malfunction Telematics communication unit malfunction
Courtesy of MAZDA MOTORS CORP.
