DTC B119F-11: Tel Antenna No. 1 Circuit Malfunction (Telematics Communication Unit): Outline

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

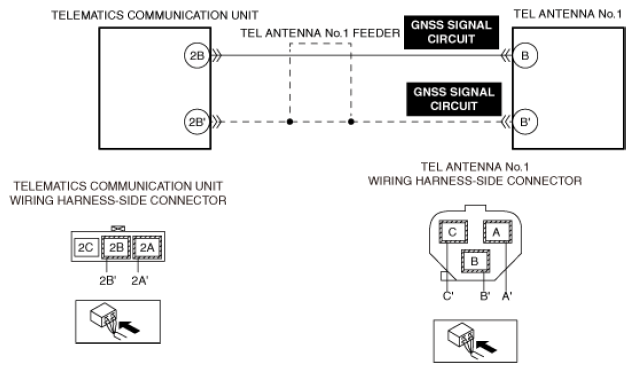

DTC B119F:11 (TELEMATICS COMMUNICATION UNIT) DETECTION CONDITION AND POSSIBLE CAUSE

System malfunction location	TEL antenna No. 1 circuit malfunction
Detection condition	The telematics communication unit detects a short to ground in the TEL antenna No. 1 circuit.
Fail-safe	Not applicable
Possible cause	TEL antenna No. 1 connector or terminal malfunction Telematics communication unit connector or terminal malfunction Short to ground in TEL antenna No. 1 GNSS signal circuit TEL antenna No. 1 malfunction Telematics communication unit malfunction
Courtesy of MAZDA MOTORS CORP.
