DTC U0198-00: Communication Error With Telematics Communication Unit [Connectivity Master Unit]: Outline
WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
DTC U0198:00 (CONNECTIVITY MASTER UNIT) DETECTION CONDITION AND POSSIBLE CAUSE
| System malfunction location |
Communication error with telematics communication unit |
| Detection condition |
- The connectivity master unit (CMU) detects a communication interruption or a communication error with telematics communication unit for approx. 30 s.
|
| Fail-safe |
Not applicable |
| Possible cause |
- Telematics communication unit connector or terminal malfunction
- Short to ground or open circuit in telematics communication unit power supply circuit
- Open circuit in telematics communication unit ground circuit
- Connectivity master unit (CMU) connector or terminal malfunction

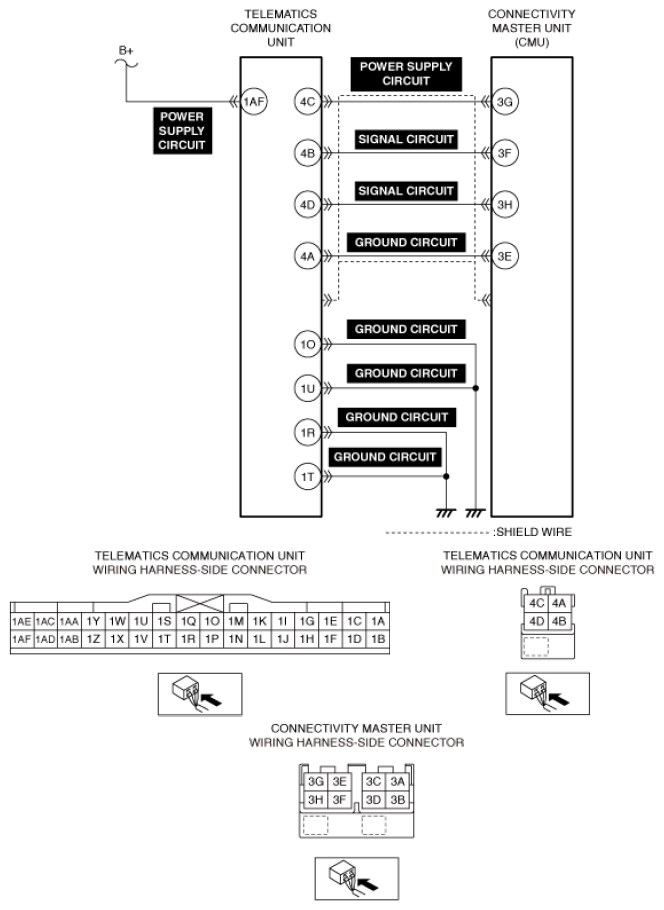

- Short to power supply, short to ground or open circuit in the circuits between the following connectivity master unit (CMU) and telematics communication unit
- Power supply circuit
- Signal circuit
- Malfunction in shield wire of circuits between connectivity master unit (CMU) and telematics communication unit
- Telematics communication unit malfunction
- Connectivity master unit (CMU) malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
