Without Bose®: Outline

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
DTC B1A07:11 (CONNECTIVITY MASTER UNIT) DETECTION CONDITION AND POSSIBLE CAUSE - WITHOUT BOSE®

System malfunction location Rear door speaker (RH) audio output circuit malfunction
Detection condition
  • The audio amplifier detects a short to ground in the rear door speaker (RH) audio output circuit for 30 s.
Fail-safe Not applicable
Possible cause
  • Rear door speaker (RH) connector or terminal malfunction
  • Audio amplifier connector or terminal malfunction
  • Rear door speaker (RH) malfunction
  • Short to ground in rear door speaker (RH) audio output circuit
  • Audio amplifier malfunction

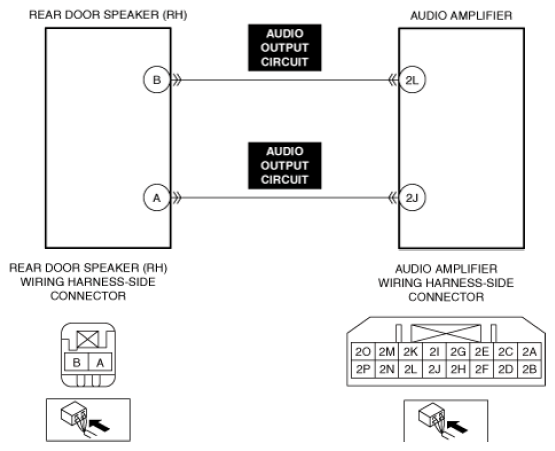

G13562205Courtesy of MAZDA MOTORS CORP.
