DTC B1A06-11: Tweeter (RH) Audio Output Circuit Malfunction [Connectivity Master Unit]: Outline

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

DTC B1A06:11 (CONNECTIVITY MASTER UNIT) DETECTION CONDITION AND POSSIBLE CAUSE

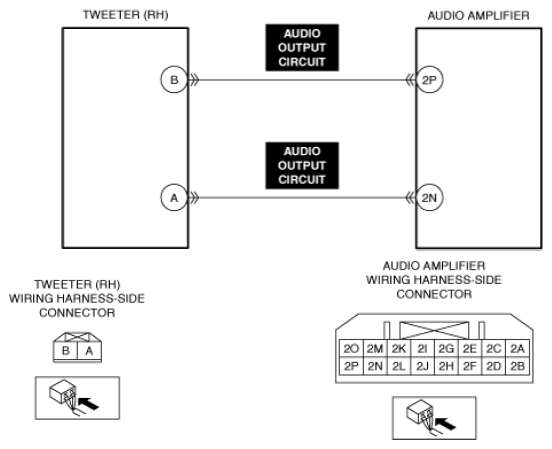

System malfunction location	Tweeter (RH) audio output circuit malfunction
Detection condition	The audio amplifier detects a short to ground in the tweeter (RH) audio output circuit for 30 s.
Fail-safe	Not applicable
Possible cause	Tweeter (RH) connector or terminal malfunction Audio amplifier connector or terminal malfunction Tweeter (RH) malfunction Short to ground in tweeter (RH) audio output circuit Audio amplifier malfunction
Courtesy of MAZDA MOTORS CORP.
