With Bose® and 5HB/WGN: Outline

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
DTC B1A05:2B (CONNECTIVITY MASTER UNIT) DETECTION CONDITION AND POSSIBLE CAUSE - WITH BOSE® AND 5HB/WGN

System malfunction location Bass-box audio output circuit malfunction
Detection condition
  • The audio amplifier detects a short circuit between the bass-box audio output circuits for 30 s.
Fail-safe Not applicable
Possible cause
  • Bass-box connector or terminal malfunction
  • Audio amplifier connector or terminal malfunction
  • Bass-box malfunction
  • Short circuit between bass-box audio output circuits
  • Audio amplifier malfunction

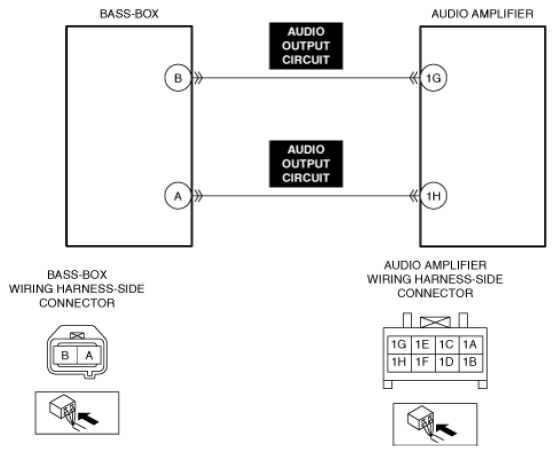

G13562200Courtesy of MAZDA MOTORS CORP.
