DTC B1A04-2B: Cowl Side Woofer (RH) Audio Output Circuit Malfunction [Connectivity Master Unit]: Outline

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

DTC B1A04:2B (CONNECTIVITY MASTER UNIT) DETECTION CONDITION AND POSSIBLE CAUSE

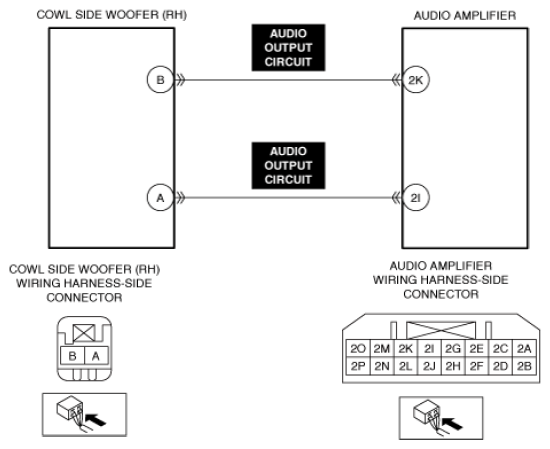

System malfunction location	Cowl side woofer (RH) audio output circuit malfunction
Detection condition	The audio amplifier detects a short circuit between the cowl side woofer (RH) audio output circuits for 30 s.
Fail-safe	Not applicable
Possible cause	Cowl side woofer (RH) connector or terminal malfunction Audio amplifier connector or terminal malfunction Cowl side woofer (RH) malfunction Short circuit between cowl side woofer (RH) audio output circuits Audio amplifier malfunction
Courtesy of MAZDA MOTORS CORP.
