With Bose®: Outline
WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
DTC B1A03:12 (CONNECTIVITY MASTER UNIT) DETECTION CONDITION AND POSSIBLE CAUSE - WITH BOSE®
| System malfunction location |
Tweeter (RH) audio output circuit or cowl side woofer (RH) audio output circuit malfunction |
| Detection condition |
- The audio amplifier detects a short to power supply in the tweeter (RH) audio output circuit or cowl side woofer (RH) audio output circuit for 30 s.
|
| Fail-safe |
Not applicable |
| Possible cause |
- Tweeter (RH) connector or terminal malfunction
- Cowl side woofer (RH) connector or terminal malfunction
- Audio amplifier connector or terminal malfunction
- Tweeter (RH) malfunction
- Cowl side woofer (RH) malfunction
- Short to power supply in tweeter (RH) audio output circuit or cowl side woofer (RH) audio output circuit
- Audio amplifier malfunction
|

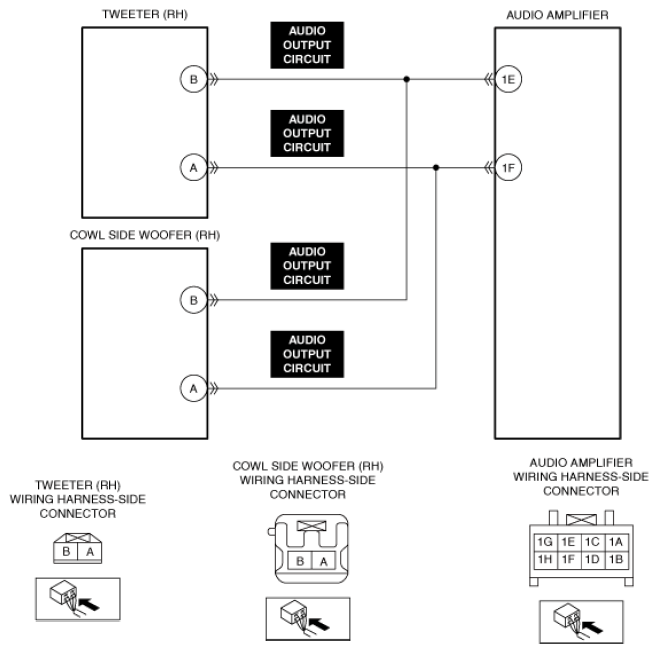

 Courtesy of MAZDA MOTORS CORP.
|
