Operation Using Commander Switch Not Possible: Outline
WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
OPERATION USING COMMANDER SWITCH NOT POSSIBLE - POSSIBLE CAUSE
| Possible cause |
- Connector or terminal malfunction of the following parts:
- Commander switch
- Connectivity master unit (CMU)

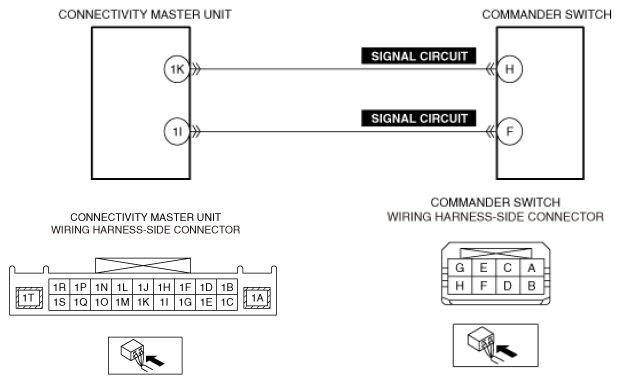

- Short to power supply, short to ground, or open circuit in commander switch signal circuit
- Commander switch malfunction
- Connectivity master unit (CMU) malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
