Without Bose®: Outline
WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

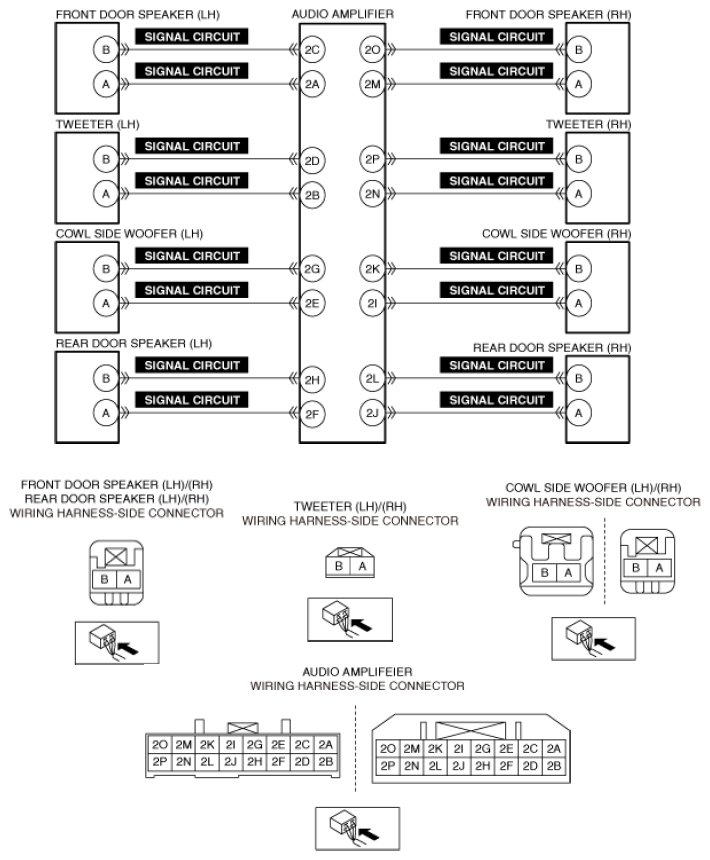

NO SOUND OUTPUT IN ALL MODES - POSSIBLE CAUSE (WITHOUT BOSE®)
| Possible cause |
- Connector or terminal malfunction of the following parts:
- Front door speaker
- Tweeter
- Cowl side woofer
- Rear door speaker
- Short to ground or open circuit in speaker signal circuit
- Front door speaker signal circuit
- Tweeter signal circuit
- Cowl side woofer signal circuit
- Rear door speaker signal circuit
- Front door speaker malfunction
- Tweeter malfunction
- Cowl side woofer malfunction
- Rear door speaker malfunction
- Audio amplifier malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
