With Bose®: Outline
WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

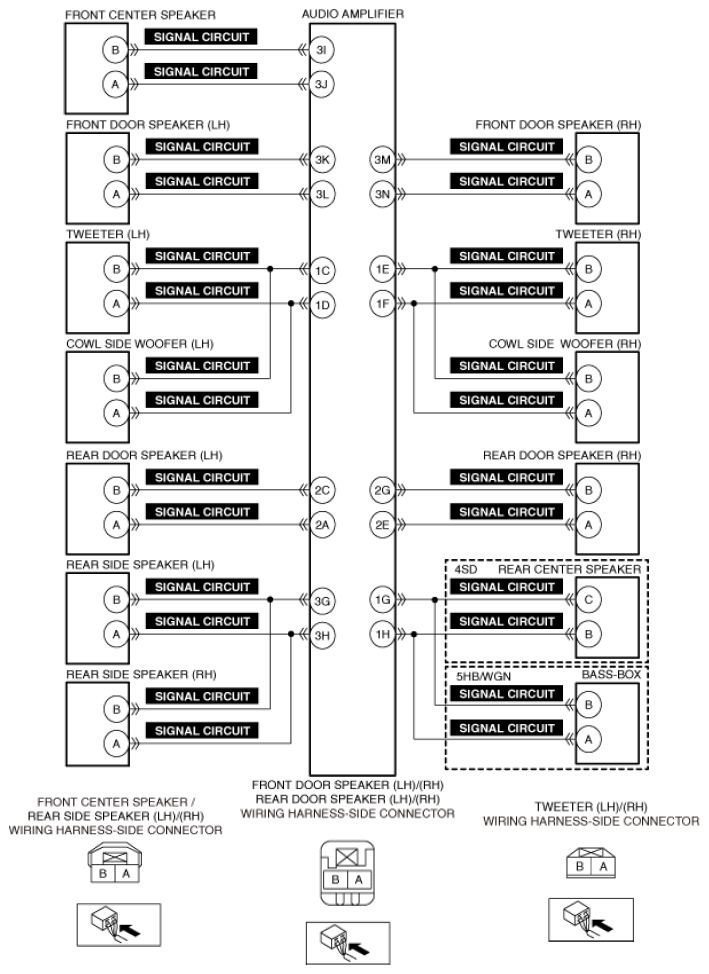

NO SOUND OUTPUT IN ALL MODES - POSSIBLE CAUSE (WITH BOSE®)
| Possible cause |

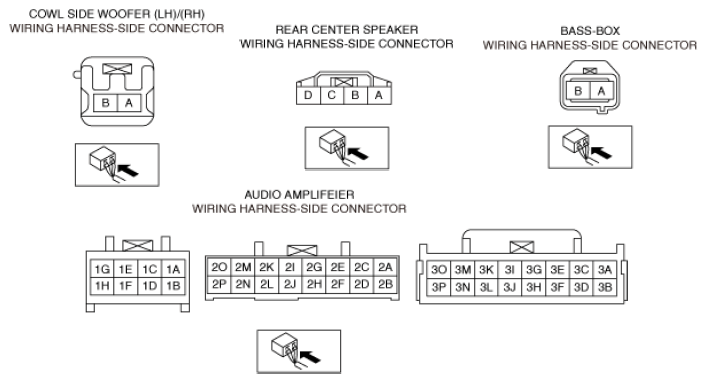

- Connector or terminal malfunction of the following parts:
- Front center speaker
- Front door speaker
- Tweeter
- Cowl side woofer
- Rear door speaker
- Rear side speaker
- Rear center speaker (4SD)
- Bass-box (5HB/WGN)
- Short to ground or open circuit in speaker signal circuit
- Front center speaker signal circuit
- Front door speaker signal circuit
- Tweeter signal circuit
- Cowl side woofer signal circuit
- Rear door speaker signal circuit
- Rear side speaker signal circuit
- Rear center speaker signal circuit (4SD)
- Bass-box signal circuit (5HB/WGN)
- Front center speaker malfunction
- Front door speaker malfunction
- Tweeter malfunction
- Cowl side woofer malfunction
- Rear door speaker malfunction
- Rear side speaker malfunction
- Rear center speaker malfunction (4SD)
- Bass-box malfunction (5HB/WGN)
- Audio amplifier malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
 Courtesy of MAZDA MOTORS CORP.
|
