Image Not Output In All Modes: Outline
WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
IMAGE NOT OUTPUT IN ALL MODES - POSSIBLE CAUSE
| Possible cause |
- Connector or terminal malfunction of the following parts:
- Center display
- Connectivity master unit (CMU)

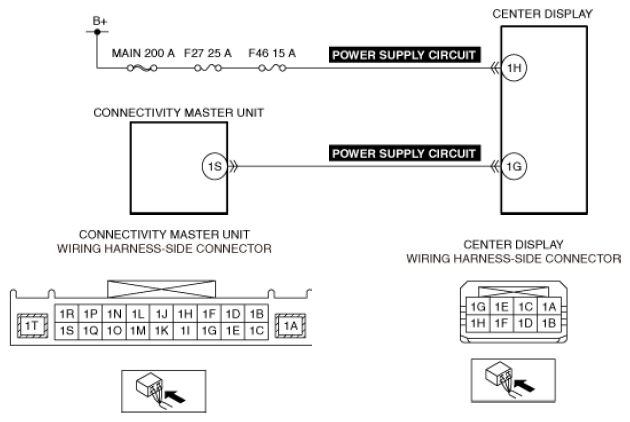

- Short to ground or open circuit in center display power supply circuit
- Center display malfunction
- Connectivity master unit (CMU) malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
