Seat Track Position Sensor Removal/Installation (Us/CANADA): Notes
WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
- Handling the front seat (with side air bag module) improperly can accidentally operate (deploy) the air bag, which may seriously injure you. Read the air bag system service warnings and cautions before handling the front seat (with side air bag module). (See AIR BAG SYSTEM SERVICE WARNINGS (US/CANADA) .) (See AIR BAG SYSTEM SERVICE CAUTIONS (US/CANADA) .)
- Switch the ignition off.
- Disconnect the negative battery terminal and wait for 1 min or more. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
- Remove the front driver's seat. (See FRONT SEAT REMOVAL/INSTALLATION (US) .)

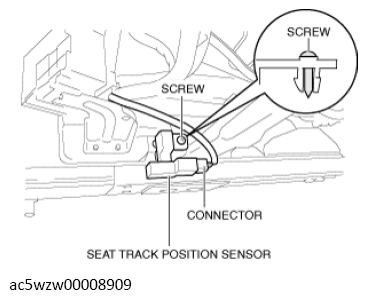

- Disconnect the connector. (See CONNECTOR DISCONNECT NOTE .)
- Remove the screw.

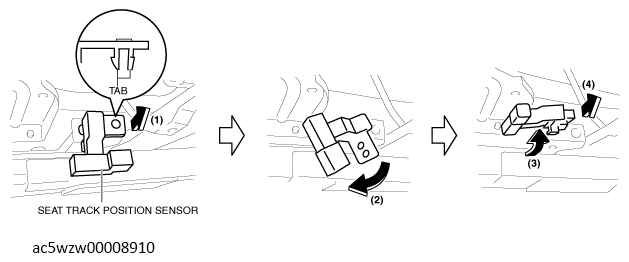

- Detach the tab while lifting up the seat track position sensor in the direction of the arrow (1).
- Rotate the seat track position sensor in the direction of the arrow (2).
- Rotate the seat track position sensor in the direction of the arrow (3).
- Remove the seat track position sensor (4).
- Install in the reverse order of removal.
- Switch the ignition ON (engine off or on).
- Verify that the air bag/seat belt pre-tensioner system warning light illuminates for approx. 6 s and turns off.
- If the air bag/seat belt pre-tensioner system warning light does not operate normally, refer to the onboard diagnostic system (air bag system) and perform inspection of the system. (See DTC INSPECTION .)
