Mid-wiring Harness Removal/installation Note

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

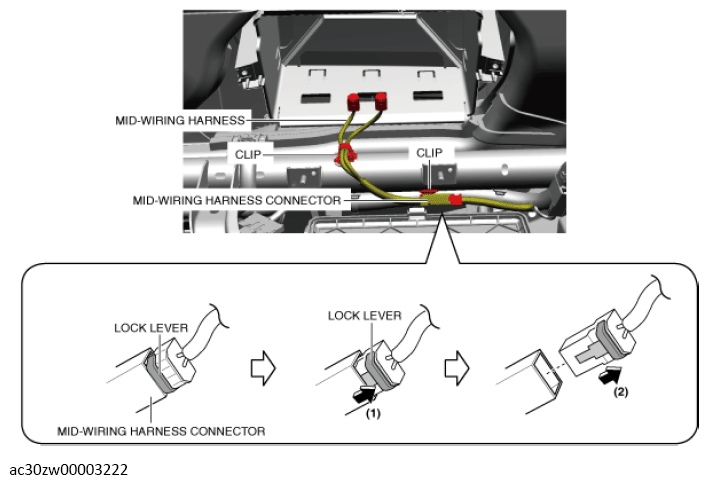

  1. Pull out the mid-wiring harness connector lock lever in the direction of arrow (1) shown in the illustration.
    G13559510Courtesy of MAZDA MOTORS CORP.
  2. Move the mid-wiring harness connector in the direction of arrow (2) shown in the illustration to disconnect it.
  3. Detach the clips.
