Knee air bag module connector disconnect note

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

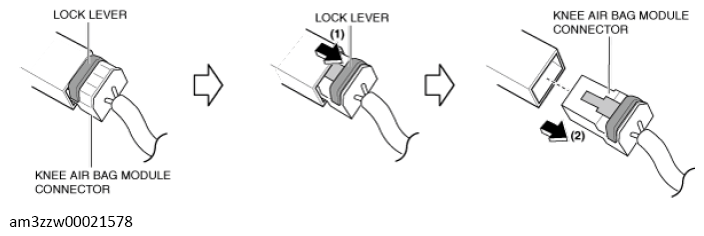

  1. Pull out the knee air bag module connector lock lever in the direction of arrow (1) shown in the illustration.
    G13559504Courtesy of MAZDA MOTORS CORP.
  2. Move the knee air bag module connector in the direction of arrow (2) shown in the illustration to disconnect it.
