Driver-side knee air bag module

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the following parts:
    1. Driver-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
    2. Driver-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
    3. Driver-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION .)
    4. Passenger-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION .)
    5. Driver-side lower panel (See LOWER PANEL DISASSEMBLY/ASSEMBLY (US) .)
    6. Driver-side knee air bag module (See KNEE AIR BAG MODULE REMOVAL/INSTALLATION (US/CANADA) .)
  2. Remove the knee air bag module from the air bag case.
    G13559401Courtesy of MAZDA MOTORS CORP.
  3. Remove the clip.
  4. Remove the nuts.
    G13559402Courtesy of MAZDA MOTORS CORP.
  5. Remove the cover.
  6. Pull out the connector stopper plate using a flathead screwdriver.
  7. Disconnect the connector.
  8. Connect the processing wiring harness to the knee air bag module.
  9. Install the cover.
  10. Install the nuts.
    WARNING:
    • If the air bag module is not securely fastened to the tire, the tire may fall due to impact and cause injury during activation (deployment). The air bag module is securely fixed to the tire with the pad facing the center of the tire.
  11. With the pad surface of the knee air bag module facing the center of the tire, wrap the automotive wiring harness (cross section 1.25 mm2 {0.002 in2 } or more) four times to secure it.
    G13559424Courtesy of MAZDA MOTORS CORP.

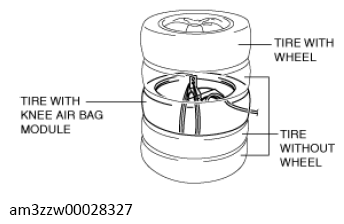

  12. Place two tires without wheels on top of each other, place a tire with the knee air bag module fixed, place another tire without a wheel on top of it, and place another tire with a wheel on top.
    G13559425Courtesy of MAZDA MOTORS CORP.
  13. Secure the tires with the automotive wiring harness (cross section 1.25 mm2 {0.002 in2 } or more).
    G11428250Courtesy of MAZDA MOTORS CORP.
  14. Verify that all persons are standing at least 6 m {19 ft} away from the tires.
    G13559414Courtesy of MAZDA MOTORS CORP.
  15. Untwist the processing wiring harness.
  16. Connect the processing wiring harness to the lead-acid battery and activate the inflator.
    G13559415Courtesy of MAZDA MOTORS CORP.
    WARNING:
    • The air bag module is very hot immediately after activation (deployment) and can cause burns if touched. Leave the actuator alone for approx. 15 min or more after activation (deployment) to let it cool down before handling.
  17. Discard the air bag module. (See AIR BAG MODULE AND PRE-TENSIONER SEAT BELT DISPOSAL PROCEDURES (US/CANADA) .)
