Driver-side air bag module

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
  • The driver-side air bag module is a dual inflator type. If the inflators are activated (deployed) one by one, the other side may be activated (deployed) unexpectedly. To prevent injury when disposing of the air bag module, always activate (deploy) both inflators on the driver-side air bag module using the following procedure.
NOTE:
  • Two processing wiring harnesses are used to activate (deploy) the driver-side air bag module.
  1. Remove the driver-side air bag module. (See DRIVER-SIDE AIR BAG MODULE REMOVAL (US/CANADA) .)
  2. Wrap the automotive wiring harness (cross section 1.25 mm2 {0.002 in2 } or more) three times in the position shown in the illustration on the driver-side air bag module.
    G13559408Courtesy of MAZDA MOTORS CORP.

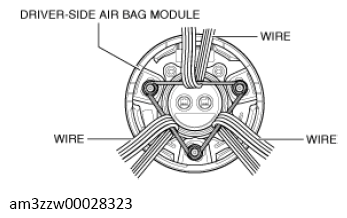

  3. Wrap the automotive wiring harness (cross section 1.25 mm2 {0.002 in2 } or more) four times in the position shown in the illustration on the driver-side air bag module.
    G13559409Courtesy of MAZDA MOTORS CORP.

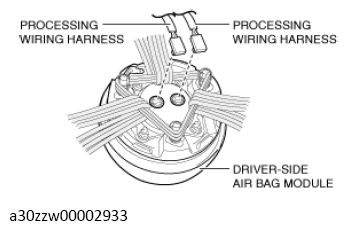

  4. Connect the processing wiring harness to the driver-side air bag module.
    G13559410Courtesy of MAZDA MOTORS CORP.
    WARNING:
    • If the air bag module is not securely fastened to the wheel, the tire may fall due to impact and cause injury during activation (deployment). The air bag module is securely fixed to the wheel with the pad side up.
  5. With the pad side of the driver-side air bag module facing up, place it in the center of the wheel, and wrap the automotive wiring harness (cross section 1.25 mm2 {0.002 in2 } or more) four times to secure it.
    G13559411Courtesy of MAZDA MOTORS CORP.
  6. Stack three tires without wheels on top of the tire with the driver-side air bag module, and stack another tire with a wheel on the very top.
    G13559411Courtesy of MAZDA MOTORS CORP.
  7. Secure the tire with the automotive wiring harness (cross section 1.25 mm2 {0.002 in2 } or more).
    G11428250Courtesy of MAZDA MOTORS CORP.
  8. Verify that all persons are standing at least 6 m {19 ft} away from the tires.
    G13559414Courtesy of MAZDA MOTORS CORP.
  9. Untwist the processing wiring harness.
  10. Connect the processing wiring harness to the lead-acid battery and activate the inflator.
    G13559415Courtesy of MAZDA MOTORS CORP.
    WARNING:
    • Check that the air bag module makes two activation sounds (explosion sounds). If there is no or only one activation sound (explosion sound), the inflators on both sides have not activated (deployed) properly, and may cause injury due to unexpected activation (deployment). If the two operation (explosive) sounds are not heard, perform Step  10 again. If the two activation sounds (explosion sounds) cannot be verified even after performing Step  10 again, wait for 30 min or more and then approach the air bag module.
    • The air bag module is very hot immediately after activation (deployment) and can cause burns if touched. Leave the actuator alone for approx. 15 min or more after activation (deployment) to let it cool down before handling.
  11. Discard the air bag module. (See AIR BAG MODULE AND PRE-TENSIONER SEAT BELT DISPOSAL PROCEDURES (US/CANADA) .)
