Oil Pump Driven Sprocket Removal Note

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
  1. Mark the following parts as shown in the illustration.
    • Oil pump driven sprocket
    • Oil pump chain
    • Balancer unit sprocket
    G11429665Courtesy of MAZDA MOTORS CORP.
    NOTE:
    • The marks will be used as alignment marks when installing the oil pump driven sprocket.
  2. While locking the oil pump against rotation as shown in the illustration, remove the oil pump driven sprocket installation bolt.
    G11429666Courtesy of MAZDA MOTORS CORP.

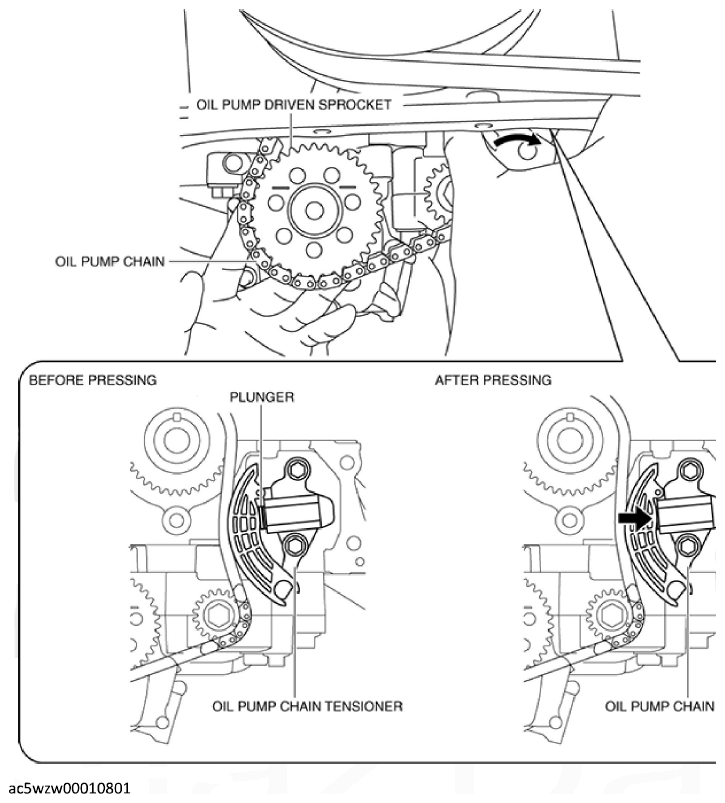

  3. While pressing the oil pump chain in the direction of the arrow shown in the illustration, remove the oil pump driven sprocket.
    G12184178Courtesy of MAZDA MOTORS CORP.
