Lubrication System Location Index
WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

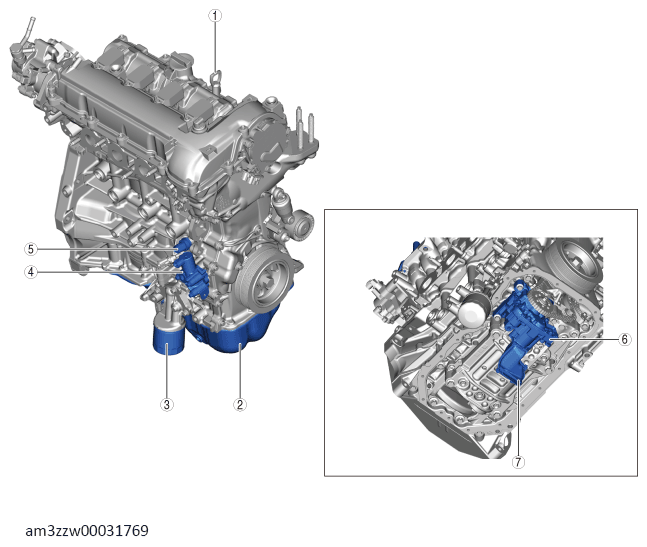

COMPONENT DESCRIPTION
| 1 | Dipstick (See ENGINE OIL LEVEL INSPECTION .) (See ENGINE OIL REPLACEMENT .) |
| 2 | Oil pan (See OIL PAN REMOVAL/INSTALLATION .) |
| 3 | Oil filter (See OIL FILTER REPLACEMENT .) |
| 4 | Engine oil solenoid valve (See ENGINE OIL SOLENOID VALVE REMOVAL/INSTALLATION .) (See ENGINE OIL SOLENOID VALVE INSPECTION .) |
| 5 | Engine oil temperature sensor/engine oil pressure sensor (See OIL PRESSURE INSPECTION .) |
| 6 | Oil pump component (See OIL PUMP REMOVAL/INSTALLATION .) |
| 7 | Oil strainer (See OIL PUMP REMOVAL/INSTALLATION .) |
