Engine Oil Solenoid Valve Operation Inspection

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

Remove the engine oil solenoid valve. (See ENGINE OIL SOLENOID VALVE REMOVAL/INSTALLATION .)
Verify that the battery is fully charged. (See BATTERY INSPECTION (US) .)

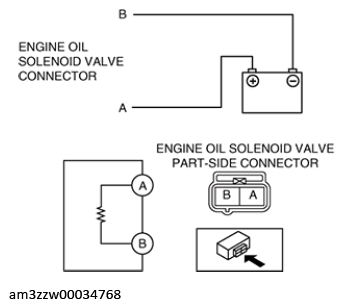

Connect the battery to the engine oil solenoid valve connector (2 terminals) as shown in the illustration.

Courtesy of MAZDA MOTORS CORP.
Verify that there is an operation sound from the engine oil solenoid valve when applying battery voltage between engine oil solenoid valve connector terminals A and B.
NOTE:
- A click sound is heard when the engine oil solenoid valve operates normally.
- If the operation sound cannot be heard, replace the engine oil solenoid valve. (See ENGINE OIL SOLENOID VALVE REMOVAL/INSTALLATION .)
Install the engine oil solenoid valve. (See ENGINE OIL SOLENOID VALVE REMOVAL/INSTALLATION .)
