Rear Splash Shield
WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the rear over fender (See REAR OVER FENDER REMOVAL/INSTALLATION .)

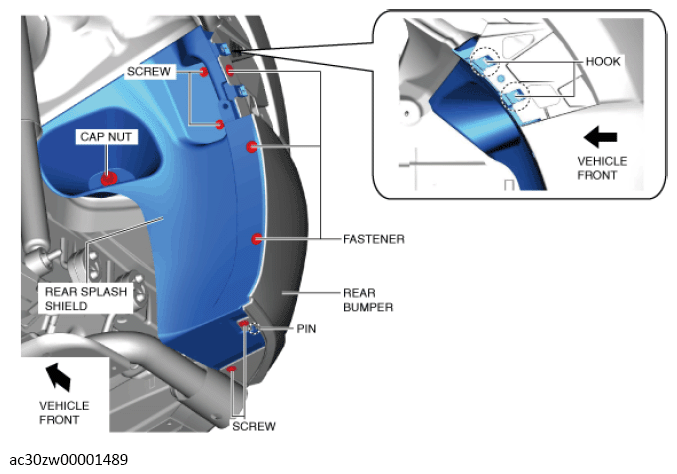

- Remove the screws, fasteners and cap nut.
- Detach the hooks.
- Remove the rear splash shield while detaching the pin.
- Install in the reverse order of removal.
