Side Spoiler Removal/Installation: Notes

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

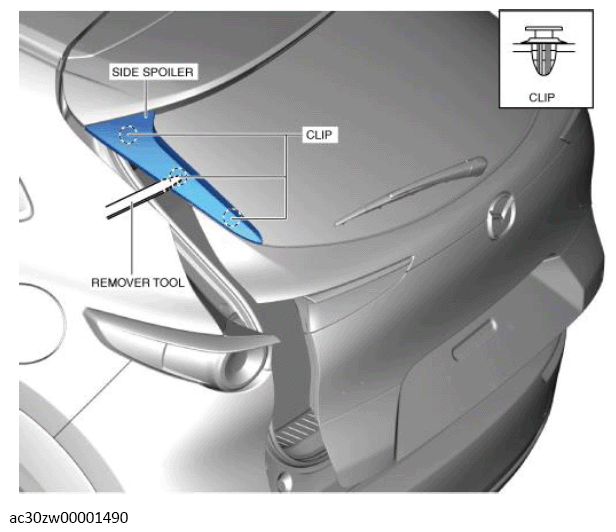

  1. Using a remover tool, remove the clips.
    G13560597Courtesy of MAZDA MOTORS CORP.
  2. Remove the side spoiler.
  3. Install in the reverse order of removal. (See SIDE SPOILER INSTALLATION NOTE .)
