Front Side Garnish

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

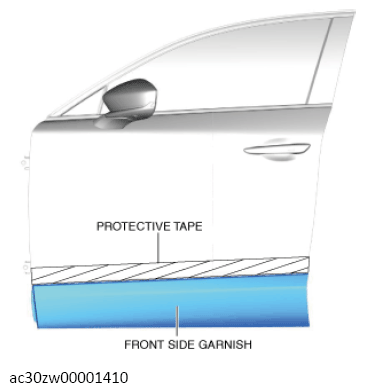

Affix protective tape to the position shown in the illustration.

Courtesy of MAZDA MOTORS CORP.
Open the front door.

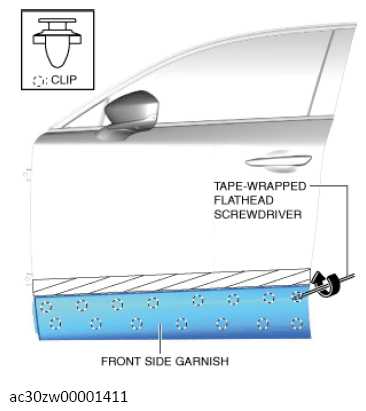

Insert a tape-wrapped flathead screwdriver into the position shown in the illustration.

Courtesy of MAZDA MOTORS CORP.
Move the flathead screwdriver in the direction of the arrow shown in the illustration and detach the clips starting from the vehicle rear.
Remove the front side garnish.
Remove the clips remaining on the front door and install them to the front side garnish.
Install in the reverse order of removal. (See SIDE GARNISH INSTALLATION NOTE .)
