Rear Door Garnish Removal/Installation: Front
WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the rear beltline molding. (See REAR BELTLINE MOLDING REMOVAL/INSTALLATION .)

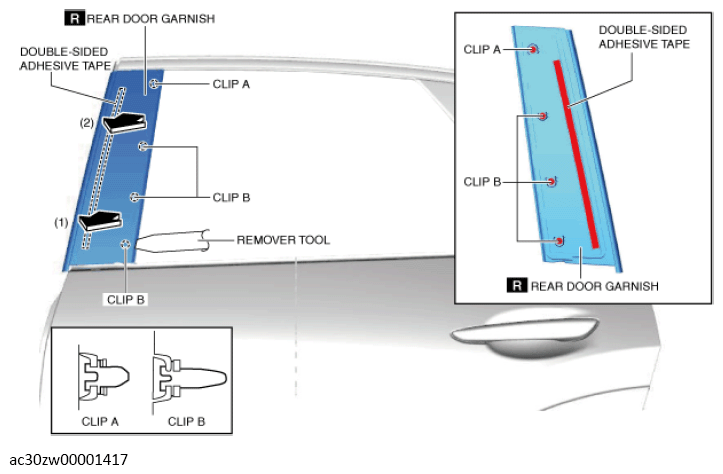

- Using a remover tool, remove the clips in the direction of arrows (1), (2) shown in the illustration.
- Remove the double-sided adhesive tape in the position shown in the illustration using a utility knife, remove the rear door garnish from the rear door sash.
- Install in the reverse order of removal. (See REAR DOOR GARNISH INSTALLATION NOTE .)
