Front Mudguard

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front tire. (See WHEEL AND TIRE REMOVAL/INSTALLATION .)
  2. Remove the front over fender. (See FRONT OVER FENDER REMOVAL/INSTALLATION .)
  3. Remove the bolt.

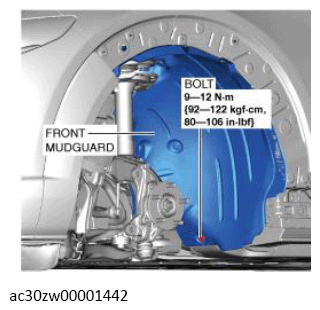

    Fig 1: Front Mudguard And Bolt With Torque Specification
    G13560545Courtesy of MAZDA MOTORS CORP.

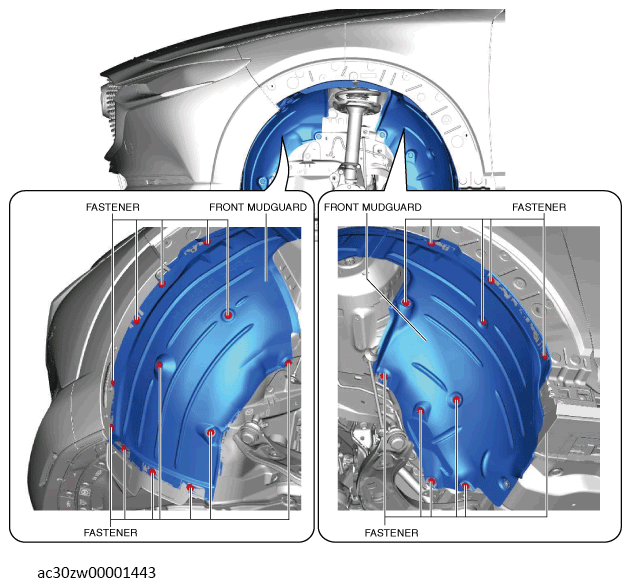

  4. Remove the fasteners.
    G13560546Courtesy of MAZDA MOTORS CORP.
  5. Remove the front mud guard.
  6. Install in the reverse order of removal.
