Liftgate Garnish Installation Note
WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
- When a liftgate garnish is to be reused, perform the following procedure:
- If the protector is damaged, replace the part that is damaged with a new protector.
- Remove the double-sided adhesive tape on the liftgate garnish and liftgate panel.
- Remove any grease or dirt from the adhesion surface of the liftgate garnish and liftgate panel.

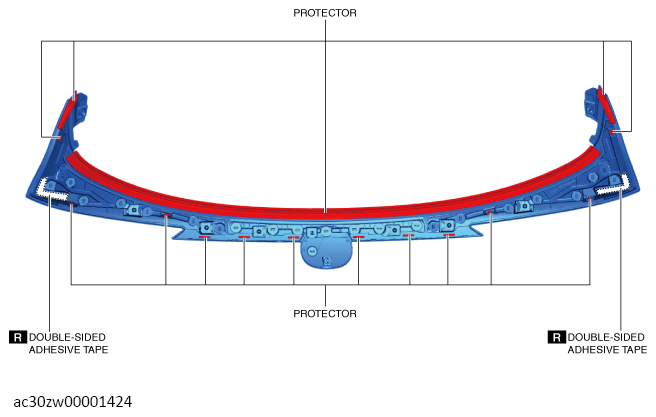

- Affix the double-sided adhesive tape to the position shown in the illustration.
- If the protector is damaged, replace the part that is damaged with a new protector.
