Front Fender Molding Removal/Installation: Removal

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

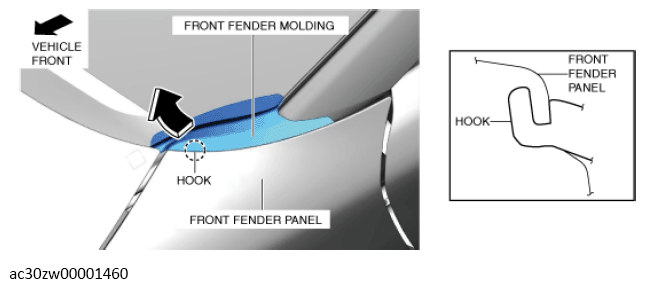

  1. Pull the front fender molding in the direction of the arrow shown in the illustration and detach the hook from the front fender panel.
    G13560529Courtesy of MAZDA MOTORS CORP.

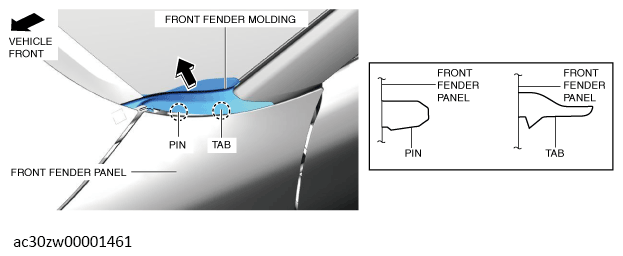

  2. Move the front fender molding in the direction of the arrow and detach the pin and tab.
    G13560530Courtesy of MAZDA MOTORS CORP.

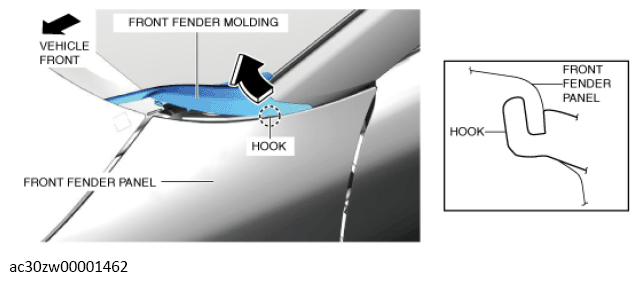

  3. Remove the front fender molding in the direction of the arrow shown in the illustration while detaching the hook from the front fender panel.
    G13560531Courtesy of MAZDA MOTORS CORP.
