Front Fender Molding Removal/Installation: Installation
WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

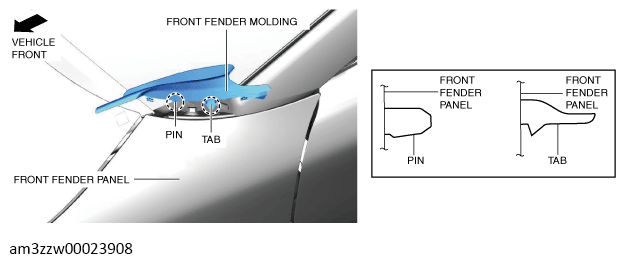

Install the pin and tab.
Courtesy of MAZDA MOTORS CORP.

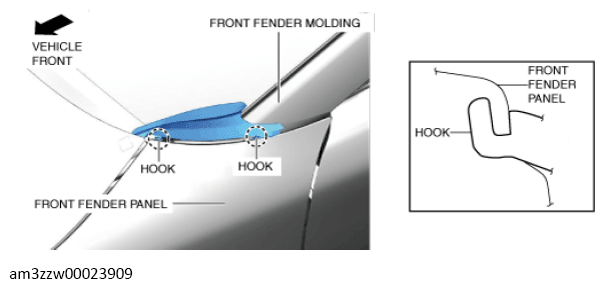

Install the hooks to the front fender panel and install the front fender molding.
