Floor Under Cover No. 2

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

Lift up the vehicle.
Remove the bolts.
LH

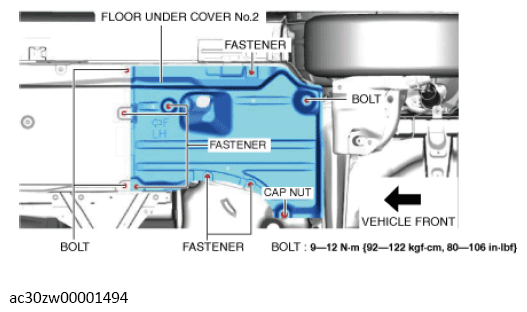

Fig 1: Floor Under Cover No. 2, Fasteners, Cap Nut And Bolts With Torque Specification (LH)
Courtesy of MAZDA MOTORS CORP.

RH

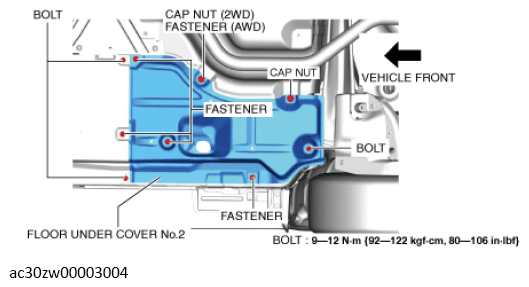

Fig 2: Floor Under Cover No. 2, Fasteners, Cap Nut And Bolts With Torque Specification (RH)
Courtesy of MAZDA MOTORS CORP.
Remove the fasteners and cap nuts.
Remove the floor under cover No. 2.
When removing the bracket, perform the following procedure (2WD) (RH only):
1. Remove the Insulator (middle). (See EXHAUST SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G (VIN M (US))] .) (See EXHAUST SYSTEM REMOVAL/INSTALLATION (VIN L) .)
2. Remove the nuts.

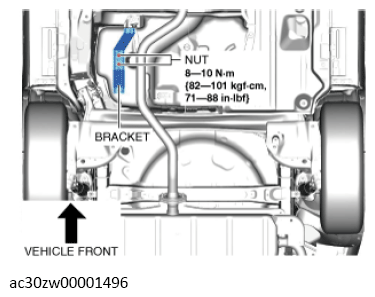

  Fig 3: Bracket And Nuts With Torque Specification
  Courtesy of MAZDA MOTORS CORP.
3. Remove the bracket.
Install in the reverse order of removal.
