Floor Under Cover No. 1

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

Lift up the vehicle.
Remove the tunnel cover. (See EXHAUST SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G (VIN M (US))] . (See EXHAUST SYSTEM REMOVAL/INSTALLATION (VIN L) .)
Remove the gusset. (See FRONT CROSSMEMBER REMOVAL/INSTALLATION [(US)] .)
Remove the bolts.
LH

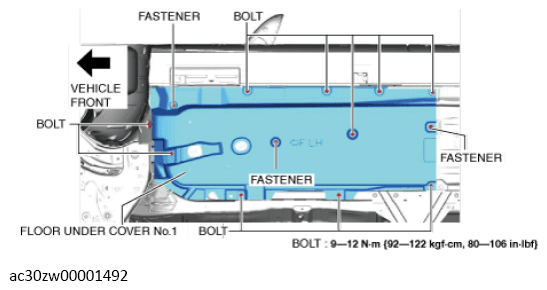

Fig 1: Floor Under Cover No. 1, Fasteners And Bolts With Torque Specification (LH)
Courtesy of MAZDA MOTORS CORP.

RH

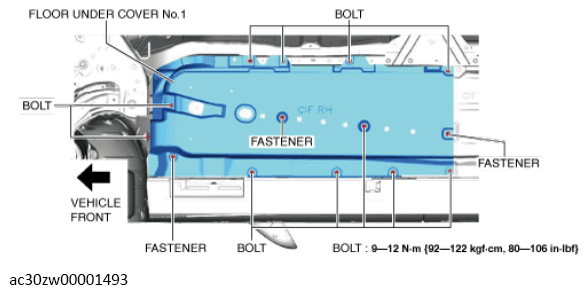

Fig 2: Floor Under Cover No. 1, Fasteners And Bolts With Torque Specification (RH)
Courtesy of MAZDA MOTORS CORP.
Remove the fasteners.
Remove the floor under cover No. 1.
Install in the reverse order of removal.
