100 YEARS emblem
WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

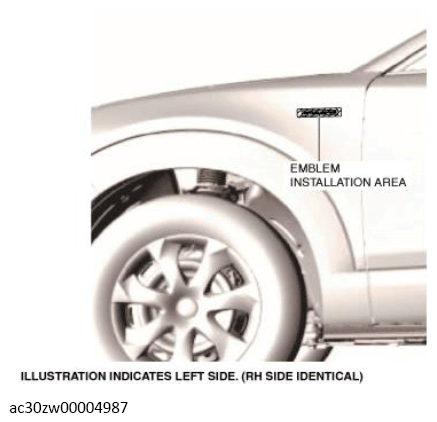

- Remove any grease or dirt from the emblem installation surface of the front fender.
- Warm the double-sided adhesive tape on the underside of the emblem to between 15°C {59°F} and 40°C {104°F} using a heat gun.

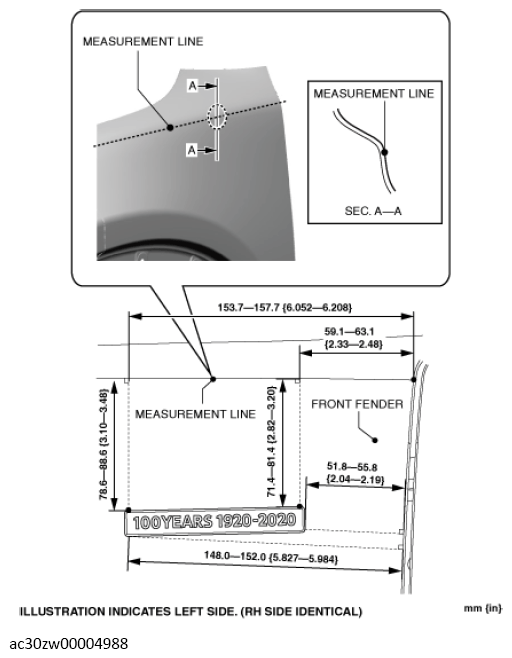

- Install the emblem to the position shown in the illustration.
- Press the emblem with a force of 29. 4 N {3. 0 kgf, 6. 61 lbf} or more.
