Rear Deflector

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the fasteners.

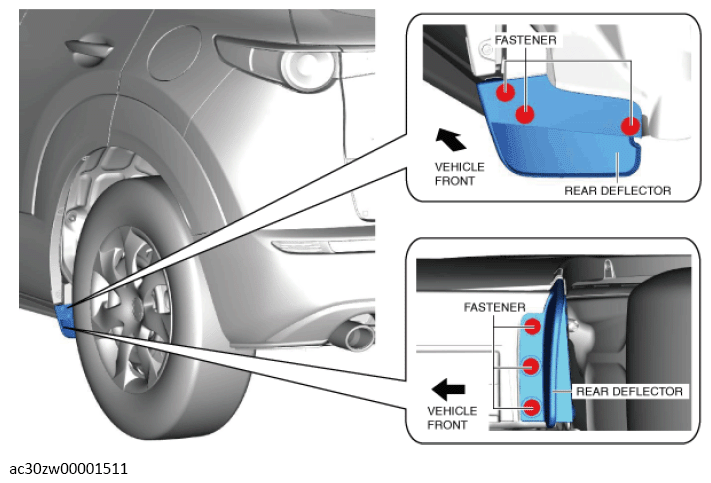

    G13560509Courtesy of MAZDA MOTORS CORP.
  2. Remove the rear deflector.
  3. Install in the reverse order of removal.
