Inspection for Short Circuit in Circuits

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
Disconnect the ground plate. (For servicing Mazda M Hybrid related parts)
Disconnect the connector on the module side and the connector on the part side of the circuit to be inspected.

Courtesy of MAZDA MOTORS CORP.
NOTE:
- For the connector disconnection procedure, refer to the removal/installation procedure for each part.
Inspect for continuity between the applicable terminals of the module-side or part-side connector.

Courtesy of MAZDA MOTORS CORP.

If there is continuity:
- To specify the malfunctioning location, go to the next step. If there is no continuity:
- There is no short between circuits, therefore the inspection is completed.

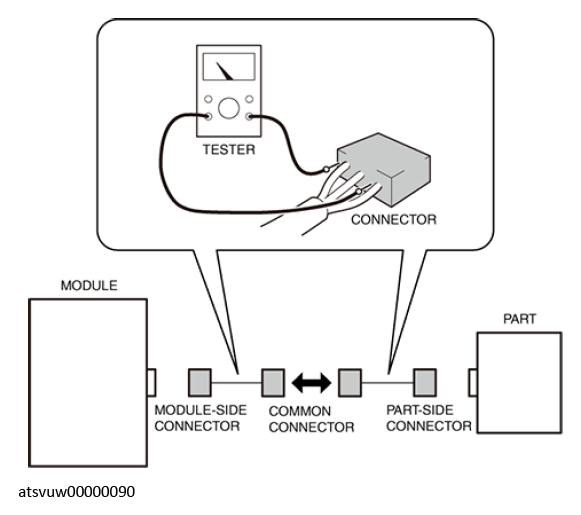

Refer to the wiring diagram and verify if there is a common connector between the applicable circuits.

If there is a common connector:

Disconnect the common connector and inspect the connector and terminal. (See CONNECTOR INSPECTION .)

Inspect each common connector for continuity to determine the malfunctioning location.

Courtesy of MAZDA MOTORS CORP.

Repair or replace the vehicle wiring harness which is shorted.

If there is no common connector:

Repair or replace the vehicle wiring harness.
