Ventilator Grille Removal/Installation (Us): Rear

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

Remove the console panel. (See REAR CONSOLE REMOVAL/INSTALLATION (US) .)

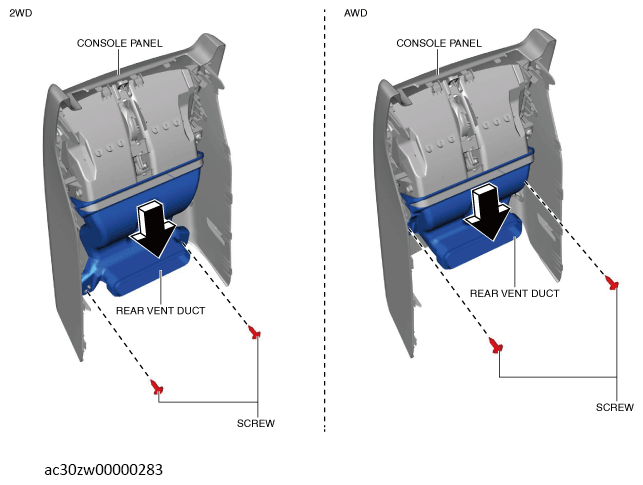

Remove the screws.

Courtesy of MAZDA MOTORS CORP.
Remove the rear vent duct in the direction of the arrow shown in the illustration.

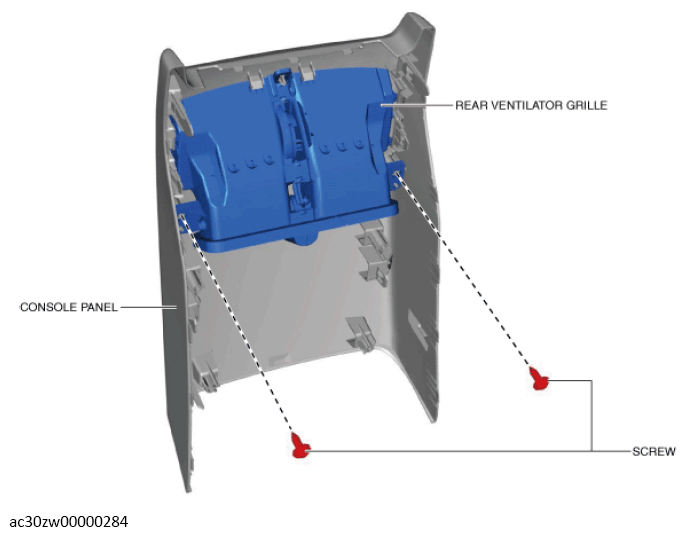

Remove the screws.

Courtesy of MAZDA MOTORS CORP.

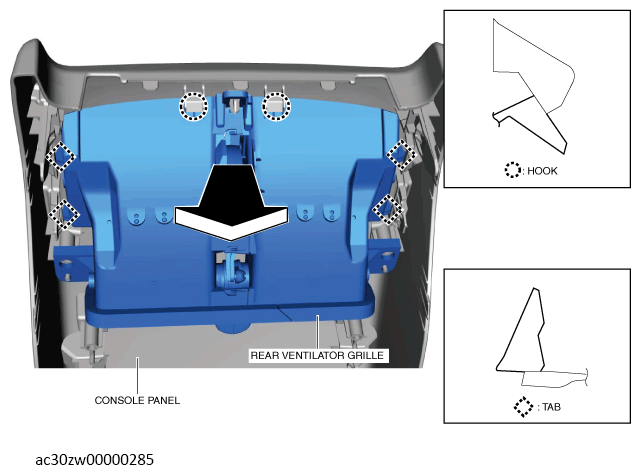

Using a tape-wrapped flathead screwdriver, remove the rear ventilator grille in the direction of arrow shown in the illustration while detaching hooks and tabs.

Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
