Front Driver-side: LH

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the driver-side decoration panel. (See DECORATION PANEL REMOVAL/INSTALLATION .)

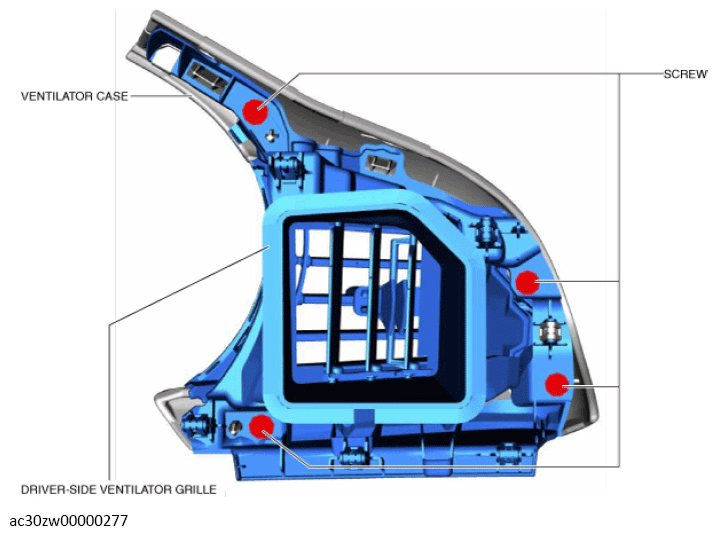

  2. Remove the screws.
    G13560830Courtesy of MAZDA MOTORS CORP.

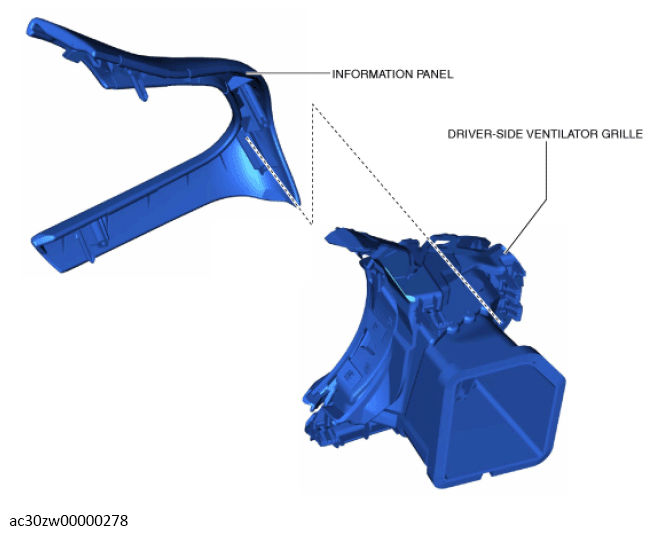

  3. Remove the driver-side ventilator grille from the information panel.
    G13560831Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
