Center Speaker Grille

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

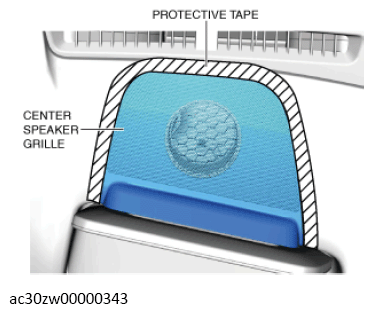

To prevent scratches or damage, affix protective tape to the position shown in the illustration of the dashboard.
CAUTION:
- If work using protective tape is performed in an area where the temperature can increase drastically or the protective tape is left adhered for a long period of time, tape adhesive could remain area where the protective tape was applied when the it is peeled off. When applying protective tape, avoid areas where the temperature of the tape can increase drastically and peel off the protective tape soon after the work is completed.
Courtesy of MAZDA MOTORS CORP.

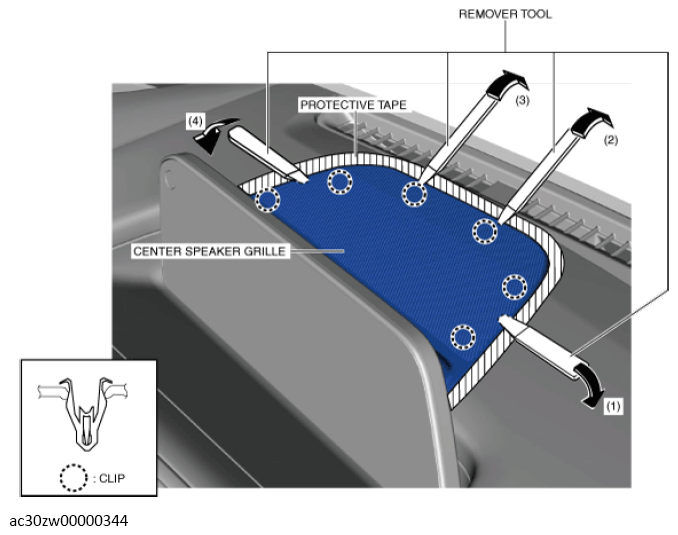

Insert the remover tool into the positions shown in the illustration, move it in the order of arrows (1), (2), (3), and (4) and detach the clips.

Courtesy of MAZDA MOTORS CORP.

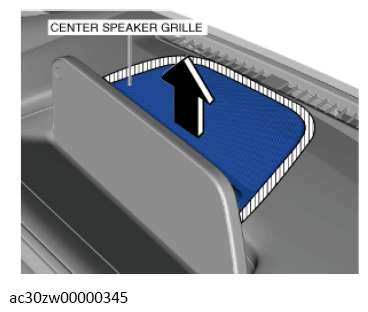

Remove the center speaker grille in the direction of the arrow shown in the illustration.

Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
