Side Wall Removal/Installation: LH
WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

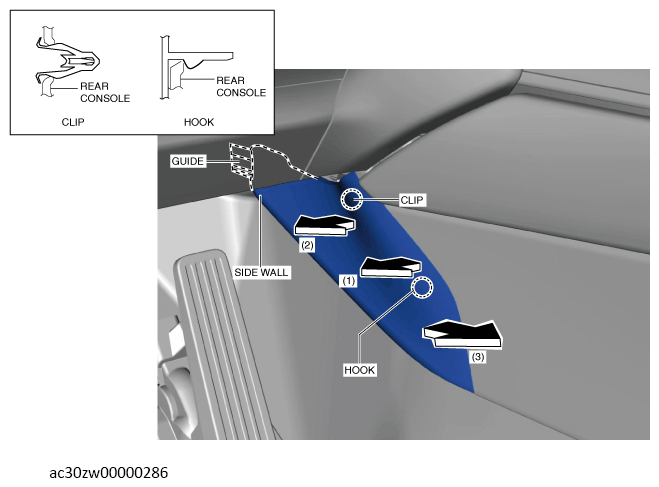

- Pull the side wall in the direction of the arrows in the order of (1), (2) and remove it while detaching the hook and clip.CAUTION:
- If the hook and clip are removed forcefully, the guide may be damaged. Carefully remove the hook and clip so as not to damage the guide.
- Pull the side wall in the direction of arrow (3) and remove it while detaching the guide.
- Install in the reverse order of removal.
