Lower Panel Removal/Installation (Us): Passenger-side: Installation

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

Connect the passenger air bag deactivation (PAD) switch connector. (with passenger air bag deactivation (PAD) switch)

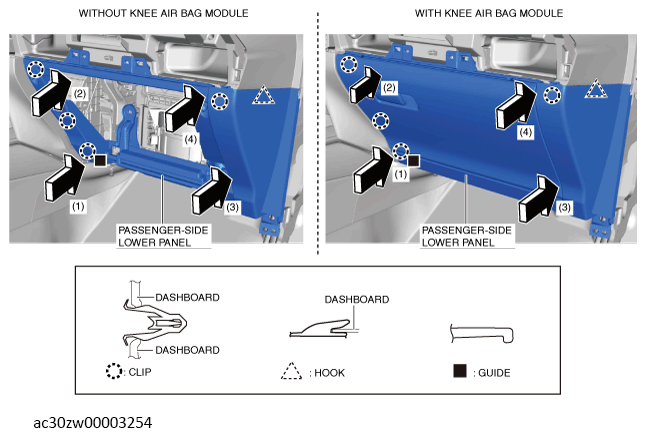

Install the clips, tab, hook, and guide while pressing the passenger-side lower panel in the order of arrows (1), (2), (3), and (4) shown in the illustration.

Courtesy of MAZDA MOTORS CORP.
Assemble the passenger-side lower panel to the dashboard and tighten the bolts and screws temporarily.

Courtesy of MAZDA MOTORS CORP.
Install the glove compartment. (without passenger-side knee air bag module) (See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)

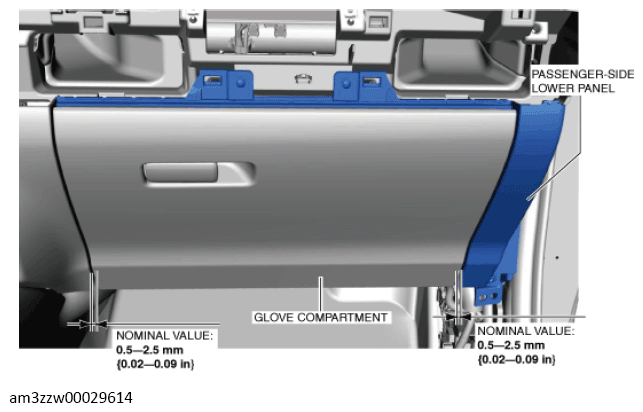

Measure the gap between the glove compartment and the passenger-side lower panel and verify that the measured value is within the nominal value. (without passenger-side knee air bag module)
- If not within the nominal value, move the passenger-side lower panel and adjust the installation position. (without passenger-side knee air bag module)
Courtesy of MAZDA MOTORS CORP.
Remove the glove compartment. (without passenger-side knee air bag module) (See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
Tighten the bolts and screws completely.

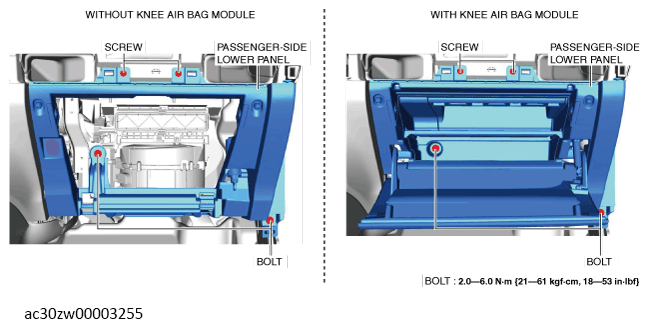

Fig 1: Passenger-Side Lower Panel, Bolts And Screws With Torque Specification
Courtesy of MAZDA MOTORS CORP.
Install the following parts:
1. Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION .)
2. Passenger-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION .)
3. Passenger-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
4. Passenger-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
5. Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
Install the seaming welt.
