Lower Panel Removal/Installation (Us): Driver-side

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
  2. Remove the following parts:
    1. Driver-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
    2. Driver-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
    3. Driver-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION .)
    4. Passenger-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION .)

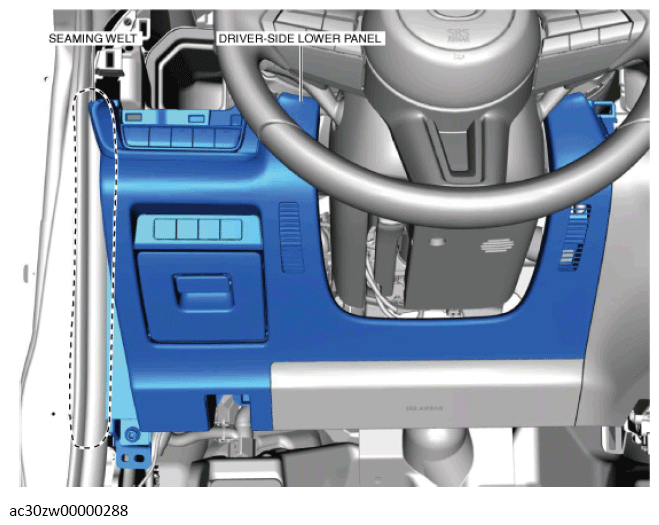

  3. Partially peel back the seaming welt.
    G13560756Courtesy of MAZDA MOTORS CORP.

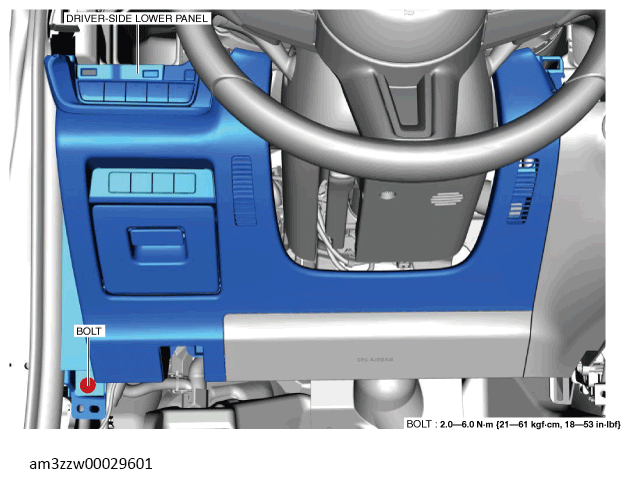

  4. Remove the bolt.
    Fig 1: Driver-Side Lower Panel And Bolt With Torque Specification
    G13560757Courtesy of MAZDA MOTORS CORP.

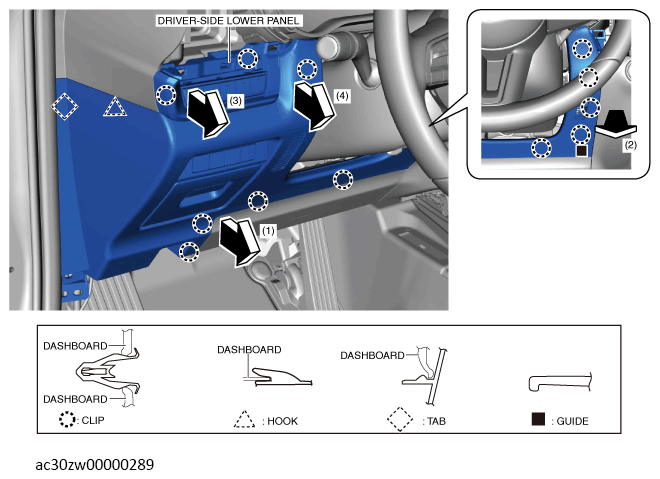

  5. Move the driver-side lower panel in the order of arrows (1), (2), (3) and (4) shown in the illustration, and remove the clips, hook, tab, and guide.
    G13560758Courtesy of MAZDA MOTORS CORP.

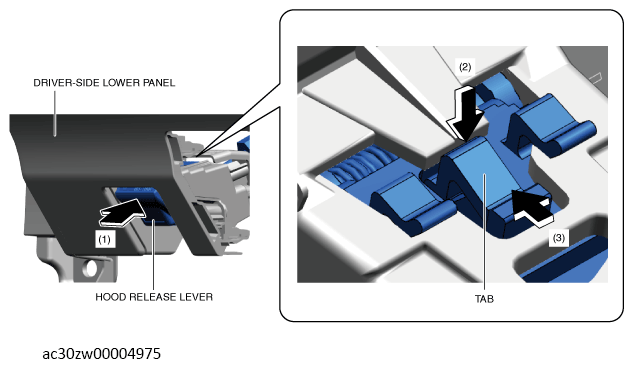

  6. While pressing the hood release lever in the direction of arrow (1) shown in the illustration, press the tab in the direction of arrow (2) and detach the tab from the driver-side lower panel.
    G13560759Courtesy of MAZDA MOTORS CORP.
  7. Remove the hood release lever in the direction of arrow (3) shown in the illustration.

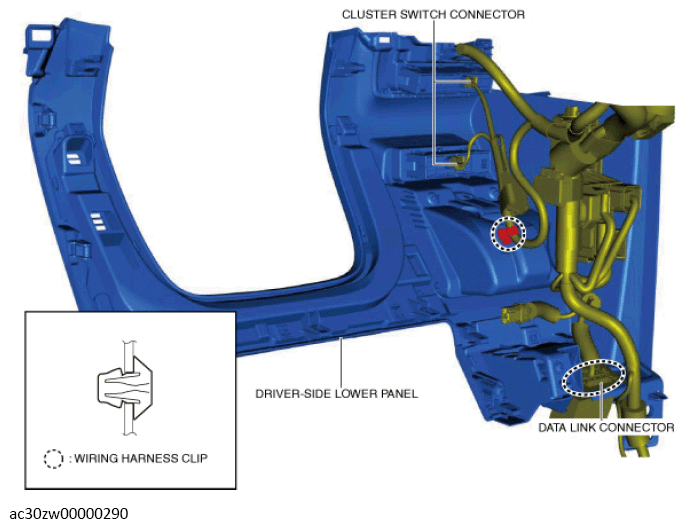

  8. Disconnect the cluster switch connectors.
    G13560760Courtesy of MAZDA MOTORS CORP.
  9. Remove the data link connector.
  10. Remove the wiring harness clip.
  11. Install in the reverse order of removal.
    NOTE:
