Without passenger-side knee air bag module
WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

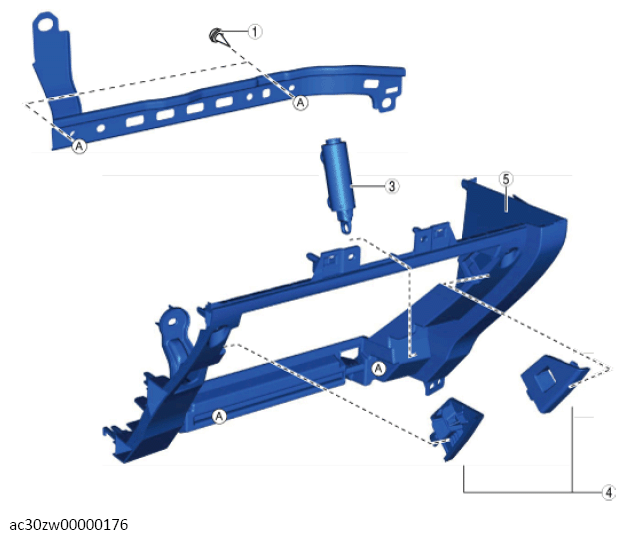

- Disassemble in the order indicated in the table.
 Courtesy of MAZDA MOTORS CORP.
|
COMPONENT DESCRIPTION
| 1 |
Screw (with bracket) |
| 2 |
Bracket (with bracket) |
| 3 |
Damper |
| 4 |
Stopper |
| 5 |
Passenger-side lower panel |
- Assemble in the reverse order of disassembly.
