Front Floor Covering Installation Note

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

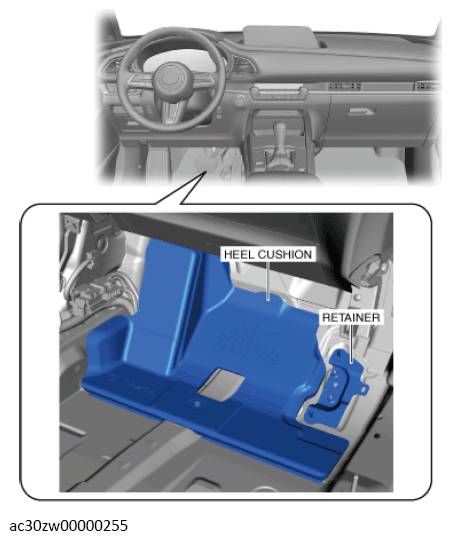

Before assembling the floor covering, verify that the heel cushion does not interfere with the retainer.

Courtesy of MAZDA MOTORS CORP.

CAUTION:

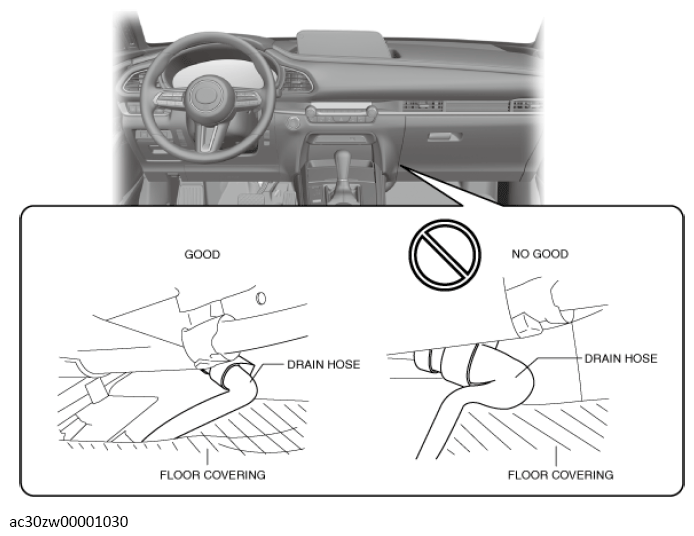

When installing the front floor covering, the front floor covering may press the A/C unit drain hose and deform it. When installing the front floor covering, align the front floor covering to the body to prevent deforming the A/C unit drain hose.

Place the front floor covering with it aligned to the body.

Before installing the side wall, verify that the A/C unit drain hose is not deformed.

Courtesy of MAZDA MOTORS CORP.
